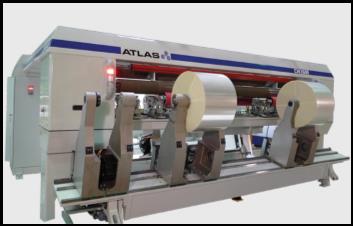

Atlas CW3600 slitter rewinder



Atlas introduces the next generation CW3600 Series of more compact slitting & rewinding solutions in web widths from 2.5 to 3.6 metres (100 - 142 ins.).

The new Atlas CW3600 Series slitter rewinder is part of a new technology platform which delivers higher efficiency, more productivity, higher quality rewind reels, reduced noise levels and more effective operator control systems.

The compact design of this slitter rewinder is harmonised with the larger CW1040 primary slitter rewinder and features an improved web path configuration. The electrical control cabinets are fully integrated which reduces the space required for installation.

In addition, high efficiency motors, improved hydraulics and a reduction in electrical wiring make the new CW3600 Series a more environmentally friendly slitting & rewinding solution.

One fully integrated HMI master control screen simplifies operation of the machine and is mounted on the machine guard.



Standard Features



Wireless rewind arm positioning

Individual direct acting contact rolls

High efficiency hydraulic system

Running speed up to 1000 m/min. (3,300 ft/min)

Widths of 2500mm (100in), 3250mm (128in) & 3600mm (142in)

Slitting in air to a minimum width of 300mm (12in)

Integrated fault diagnostics with remote internet access

Rewind static control system

Driven rollers



Optional Features



· Choice of narrow & heavy-duty rewind arms

· Automatic knife positioning system

· Automatic rewind arm positioning system

· Running speed up to 1200 m/min. (4,000 ft/min)

· Individually driven rollers

· Slitting in groove

· Additional unwind static control bars

· Minimum slit width 200mm (8in)

· Unwind & rewind section safety scanners
